4: The Circuit Board

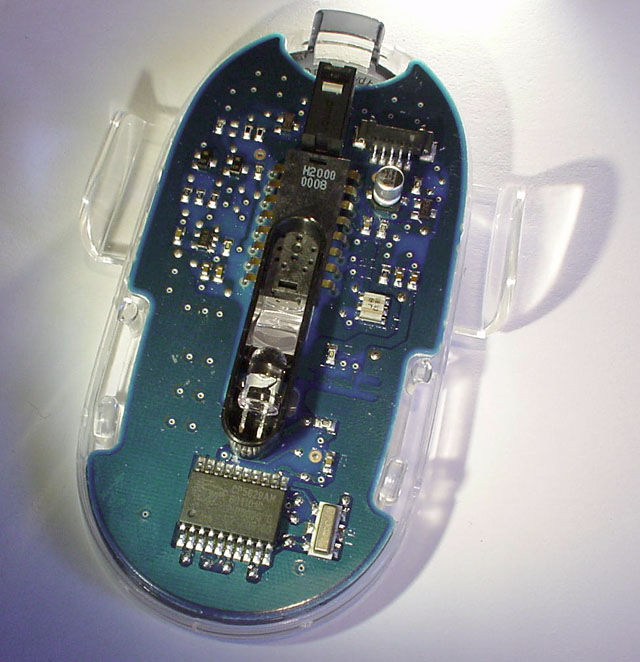

Here a photo showing the Circuit Board. Apple used a (expensive) double-sided circuit board. The equivalent Logitech mouse manages (through smarter design) to use a single sided circuit board.
