6: The Lens

This item is two parts in one.

1) This part (on the left in the picture below) takes the light from the LED and shines it onto the surface beneath the mouse.

2) The lens (on the right in the picture) which focusses the camera chip on the (lighted) surface beneath the mouse.

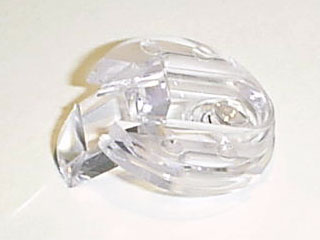

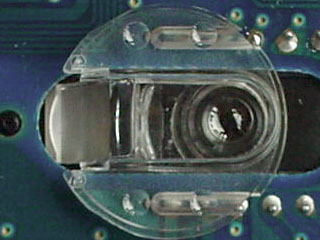

The Lens loose The Lens in situ

The story continues: go to Part 7...
